PV Module Solar panels test hail impact testing machine IEC 61215

PV Module Solar panels test hail impact testing machine IEC 61215

$75,000.00 USD
$300,000.00 USD $75,000.00 USD
Sale Sold out
Shipping calculated at checkout.
Hail Size
HTPV-09

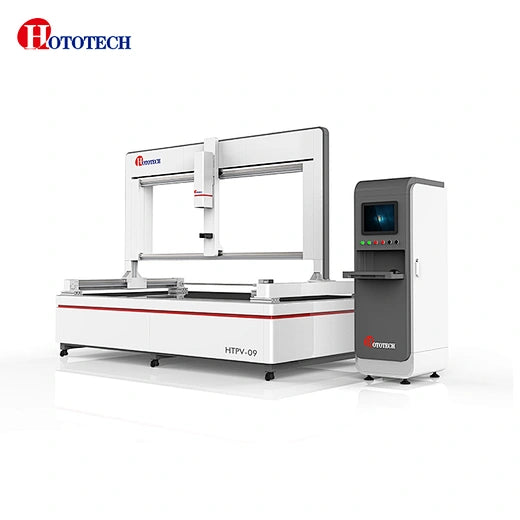

This hail impact test equipment is designed to verify the ability of solar panels to resist hail impacts. Artificially made ice hockey balls are used to simulate hail and the impact of hail climate on solar panels, ensuring long-term reliability of the PV modules.

It’s according to IEC61215-MQT17、IEC TS 63397-2022 HMQT17 testing standard requirement.It’s to verify that the module is capable of withstanding the impact of hailstones, artificially made ice hockey is used to simulate hail and impact components at a constant speed, simulating the impact of hail climate on components.

Testing Machine’s advantage

This hail impact test equipment is designed to verify the ability of solar panels to resist hail impacts. Artificially made ice hockey balls are used to simulate hail and the impact of hail climate on solar panels, ensuring long-term reliability of the PV modules.

  • The Mainly Feature
  • The testing machine’s raw material: Aluminum profile structure ( firm and Antirust)
  • Can satisfy 2015mm*996mm solar panel size ( It’s can adjustable, and suit for different solar panel size testing)
  • Launch device
  • - power source is air compressor
    - Air pressure:6-8 bar
    - Ice ball single filled by Manual
    - The barrel length approx 940mm
    - The barrel can change
  • The guide ways is high quality import guide rail
  • Driving ways adopt import servo motor+synchronous wheel

Moving locating device:
  • X shaft move distance approx: 2.1m
  • Y shat move distance approx: 1.0m
  • Locating accurate:≤1mm
  • Impact area:2015mm*996mm (adjustable, its can suit for different size solar panel testing)
  • Locating control ways is PC control and automatic locating

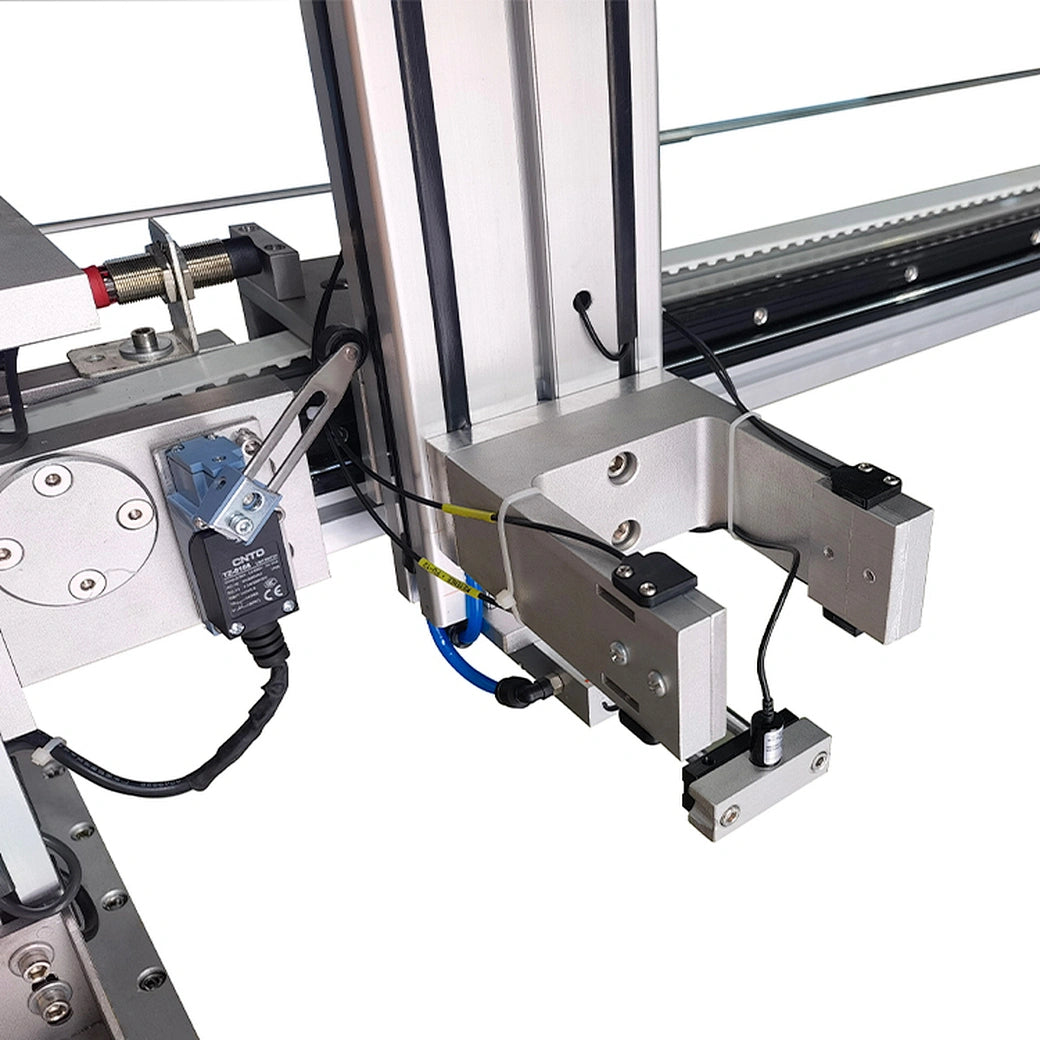

  • Testing velocity system and theory:
  • The ice ball through the infrared test velocity sensor, meanwhile catch infrared by breaking time T, according to the V-S/T calculation ice ball flight velocity
  • Infrared test speed sensor accurate:+/-5%
  • The speed catch range:0-50 m/ s
  • Ice ball diameter, mass and speed:
    Diameter (mm) Mass (g) Speed (m/s) Diameter(mm) Mass (g) Speed (m/s)
    25 7.53<5% 23.0+/-5% 35 20.7<5% 27.2+/-5%
    45 43.9<5% 30.7+/-5% 55 80.2<5% 33.9+/-5%
    65 132.0<5% 36.7+/-5% 75 203.0<5% 39.5+/-5%


    Ice ball mould specifications:
  • 1 mould with 6 ice ball, each ice ball size with 2 set mould
  •  The mould material: Special materials and the ice ball easy take off from the mould
  •  The mould process: CNC processing

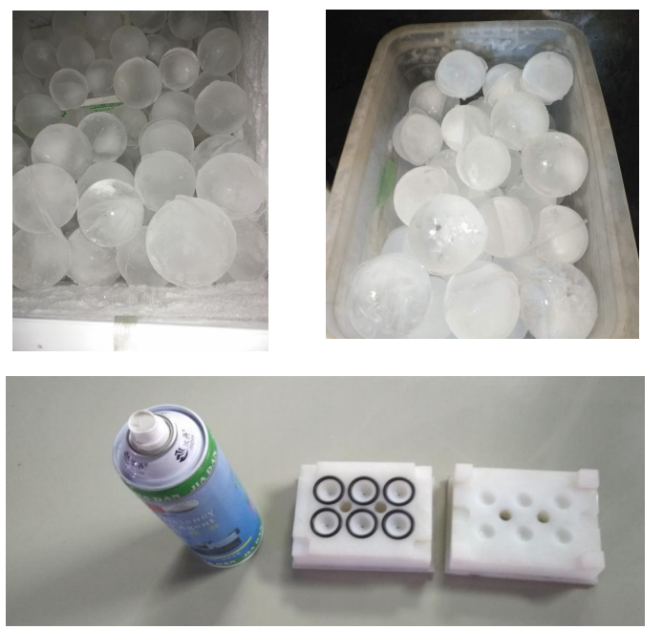

  • The ice ball and mould figures display
