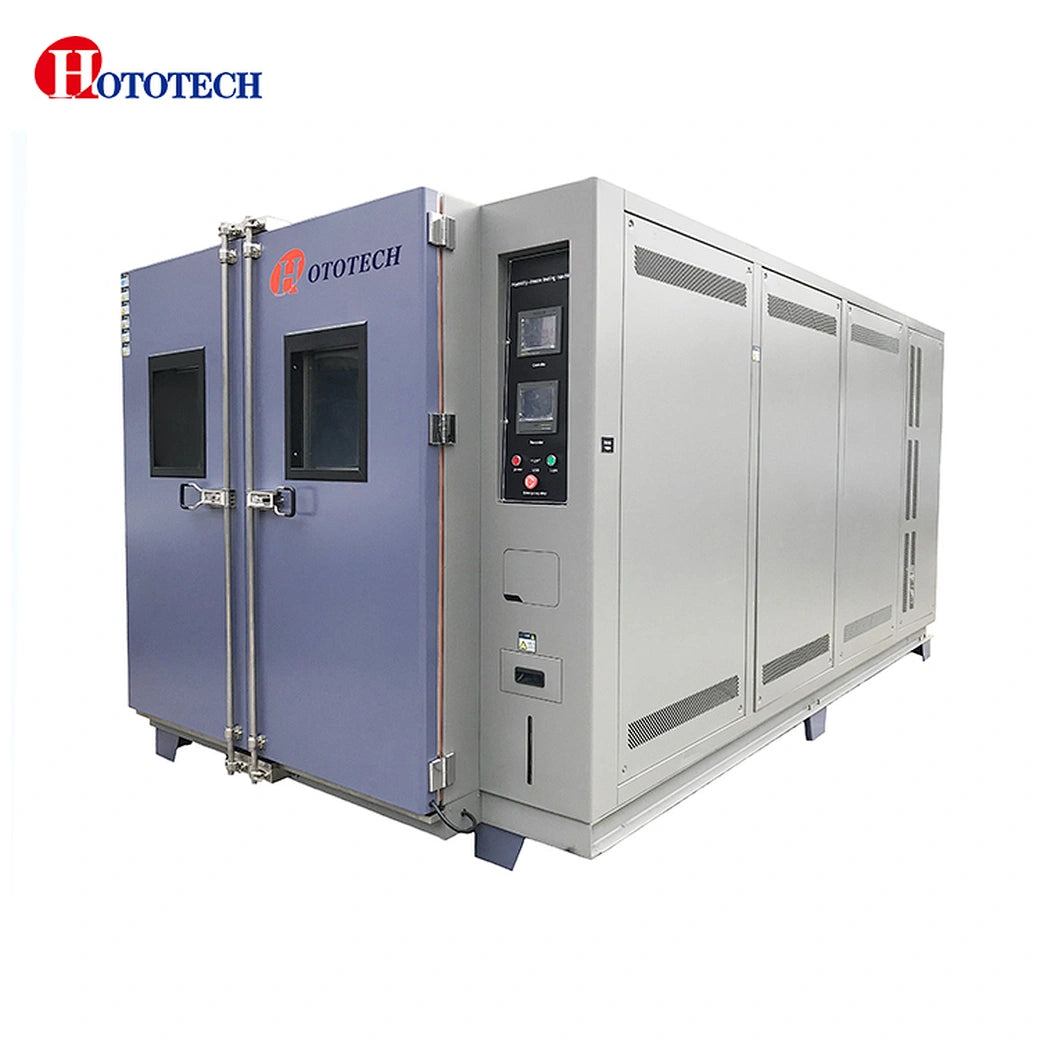

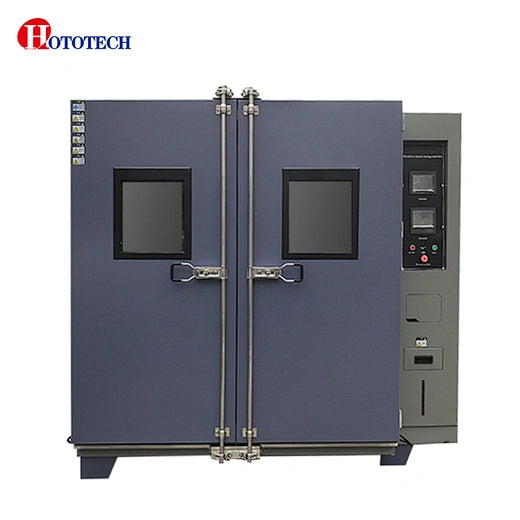

PV Module Damp Heat Test - Solar PV Module TC/HF Environment Chamber Tester
PV Module Damp Heat Test - Solar PV Module TC/HF Environment Chamber Tester
Regular price
$65,000.00 USD
Regular price
$300,000.00 USD
Sale price
$65,000.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
HTPV-16
Solar panels damp heat test equipment, the lab humidity chamber and chamber test machine are equipment used to determine solar panels' ability to withstand long-term humidity penetration effects. The most favorable climate chamber price is available for HTPV-16.
PV module damp heat test equipment is a necessary testing equipment for IEC61215 MQT13 & IEC61730 MST53 testing standard requirement.
Testing Machine’s advantage
Testing chamber structure introduce
1.Inner chamber material: SUS # 304 high temperature resistant stainless steel plate
2.Outer chamber material: Antirust steel plate + baking paint treatment
3.Insulation Material：High density hard PU foaming and glass insulation cotton
On the door with the view window, the view window welding in the middle of the door , prevent moisture seeping in to the insulation
4.The chamber inner size: 1.0m×2.2m×1.3m ( W×D×H)
5.The chamber inner can put 8 PCS solar panel
The Mainly specifications
4.The electricity:380V 60HZ
5.Refrigerant: Environmental protection refrigerant , condenser:water cooled
6.Air supply circulation system: Motor
Control system:
Lab Requirement:
1.Environment requirement: 23℃±2℃
2.Area Requirement: The machines dimension: 2.0m×2.3m×2.5m ( W×D×H)
3.Electricity requirement: 3phase , 380V 50HZ
Testing chamber structure introduce
1.Inner chamber material: SUS # 304 high temperature resistant stainless steel plate
2.Outer chamber material: Antirust steel plate + baking paint treatment
3.Insulation Material：High density hard PU foaming and glass insulation cotton
On the door with the view window, the view window welding in the middle of the door , prevent moisture seeping in to the insulation
4.The chamber inner size: 1.0m×2.2m×1.3m ( W×D×H)
5.The chamber inner can put 8 PCS solar panel
The Mainly specifications
- Temperature range: Room temperature to 120℃
- Humidity range:30%~95%RH
- Damp heat testing: common moisture point: 85℃/85%RH ,the sustainable time ≥1000H
4.The electricity:380V 60HZ
5.Refrigerant: Environmental protection refrigerant , condenser:water cooled
6.Air supply circulation system: Motor
Control system:
- PID automatic calculus
- Control ways: Touch Screen Control
- Real-time curve display: with the program set time, adjustable curve sampling record cycle, set
- Real-time set display: with the perform program number, remain time ,cycle times ,
- Communicate interface: RS485 communicate interface, can connect to the computer , the data
- Use the U disk can copy the testing data and transfer to the computer
- Language:With English
- When Power off, It’s will automatic reset and memory function
- Data acquisition : Export, view graphic function
Lab Requirement:
1.Environment requirement: 23℃±2℃
2.Area Requirement: The machines dimension: 2.0m×2.3m×2.5m ( W×D×H)
3.Electricity requirement: 3phase , 380V 50HZ
