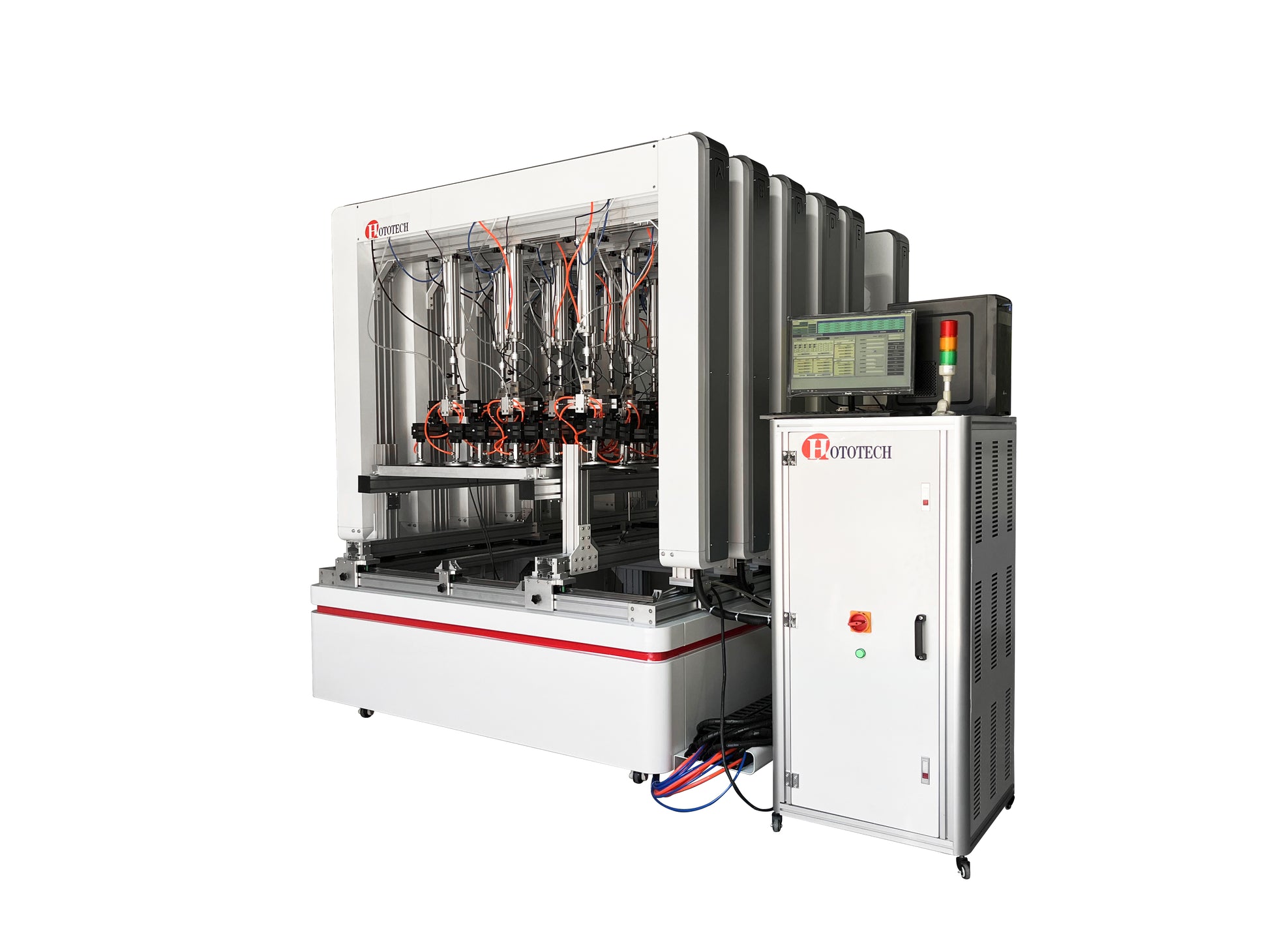

This mechanical technical load tester is to determine the ability of the module to withstand wind, snow, and static. Meet the computer stress test tool and point load test machine requirements of IEC 61215 standards.
This mechanical load tester performs tests per IEC 61215 and IEC 61730. It tests to those standards. That is not a certification of ZA Tech.
Testing Machine’s advantage
1.Dynamic & static integration, can satisfy the Dynamic load testing, and also satisfy the Static load testing
2.The Static load mode：The positive load can realize +8000 Pa (can adjustable)
The reverse load can realize -6000 Pa (can adjustable)
3.Dynamic load mode：Dynamic load:1000 Pa, 1000 times, the dynamic load frequency:7s±3s
4.Cycle times：Free Setting
5.Pressure control accurate：5%
6.Real-time display of the solar panel’s deformation, and drawing of the force curve and pressure curve
1.Dynamic & static integration, can satisfy the Dynamic load testing, and also satisfy the Static load testing
2.The Static load mode：The positive load can realize +8000 Pa (can adjustable)
The reverse load can realize -6000 Pa (can adjustable)
3.Dynamic load mode：Dynamic load:1000 Pa, 1000 times, the dynamic load frequency:7s±3s
4.Cycle times：Free Setting
5.Pressure control accurate：5%
6.Real-time display of the solar panel’s deformation, and drawing of the force curve and pressure curve
7.During testing, real-time monitor the current & voltage of the solar panel
8.When the deformation value is more than the setting value, the machine will automatically protect
and stop
9.When the current is more than the setting value, the machine will automatically protect and stop
The Mainly Feature
1.The mechanical load tester raw material: Aluminum profile structure (firm and Antirust)
2. Module size: the base configuration in the HTPV-08 datasheet fits a 2015 mm × 996 mm module. The frame is adjustable for other module sizes.
3.Pneumatic and force value feedback ways: low friction force cylinder, tensile pressure
Sensor ( the accurate:0.1N)
4. Cylinders: the base configuration in the HTPV-08 datasheet uses 10 cylinders with a 125 mm stroke. Larger configurations use more cylinders. The cylinder count and layout for the configuration you choose are confirmed in your quote.

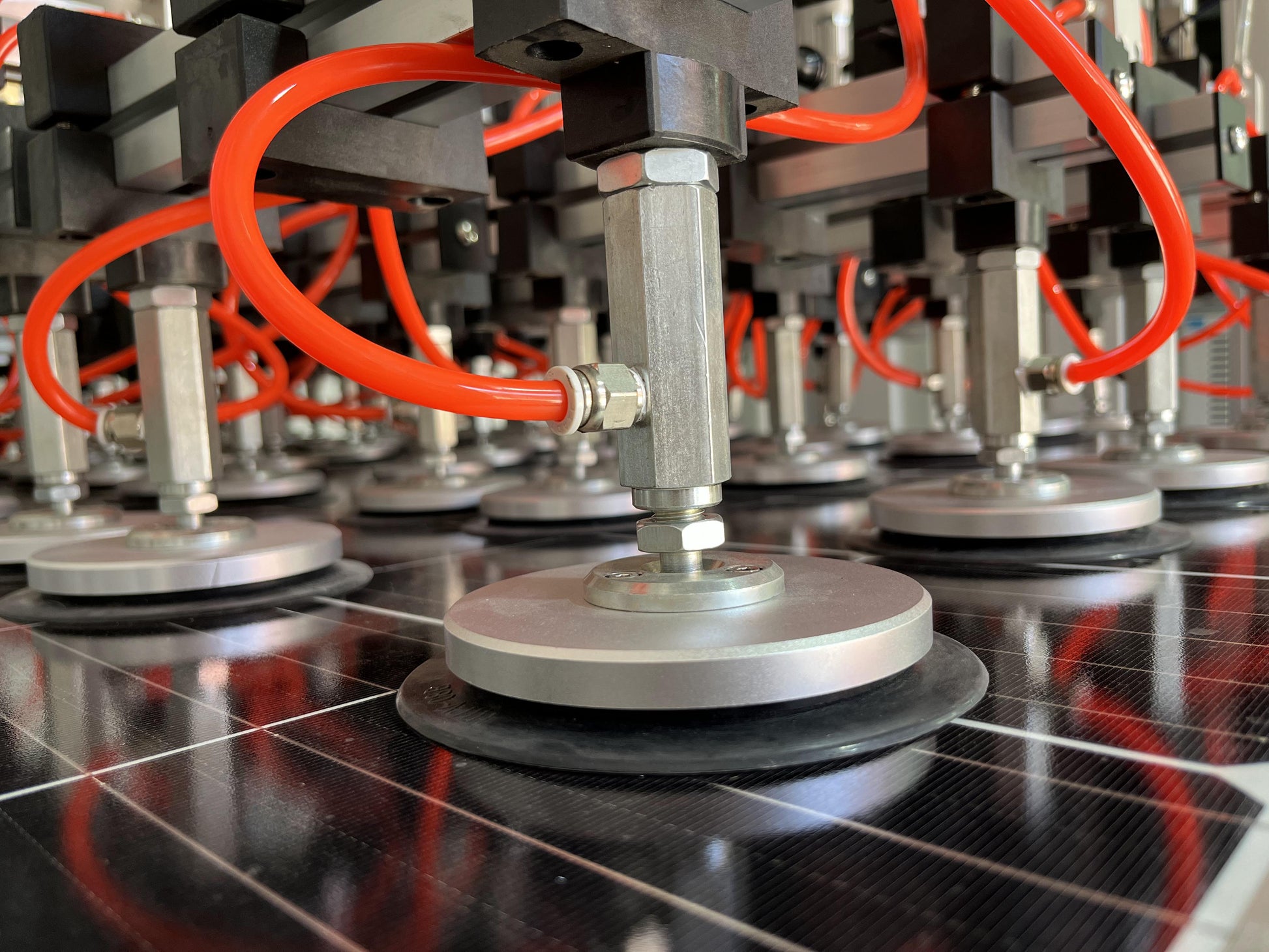

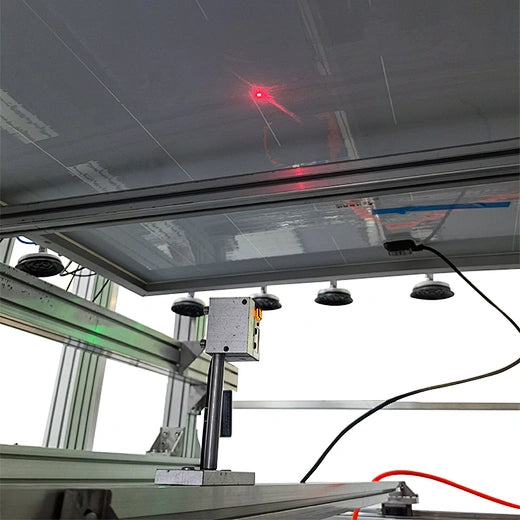

5. Suction cups: 120 mm diameter, center-to-center spacing of 200 mm or less, swivel of 15° or more. The base configuration uses 40 cups (4 per cylinder).
6.Control ways: Computer control
7.The mechanical load tester can save the testing result and export it to report.
Mechanical load tester software feature：
9.When the current is more than the setting value, the machine will automatically protect and stop
The Mainly Feature
1.The mechanical load tester raw material: Aluminum profile structure (firm and Antirust)
2. Module size: the base configuration in the HTPV-08 datasheet fits a 2015 mm × 996 mm module. The frame is adjustable for other module sizes.
3.Pneumatic and force value feedback ways: low friction force cylinder, tensile pressure
Sensor ( the accurate:0.1N)
4. Cylinders: the base configuration in the HTPV-08 datasheet uses 10 cylinders with a 125 mm stroke. Larger configurations use more cylinders. The cylinder count and layout for the configuration you choose are confirmed in your quote.
5. Suction cups: 120 mm diameter, center-to-center spacing of 200 mm or less, swivel of 15° or more. The base configuration uses 40 cups (4 per cylinder).
6.Control ways: Computer control
7.The mechanical load tester can save the testing result and export it to report.
Mechanical load tester software feature：
- Computer operate and control software by HOTOTECH researched and development, easy operate and test data stable
- The software supports Chinese and English, with the Switching function
- Software real-time display pressure, deformation, testing time, cycle times, and current electricity continuity
- Software real-time drawing pressure and deformation curve
- Software real-time displays each cylinder’s force value and draws the force value curve
- Testing data real-time storage, query & print
- The Testing data can be exported in Word，Excel, PDF, or JPG format
- The software with the fault warning function
