HOTOTECH | HTBC-1129 | Four-in-One Battery Pack Safety Comprehensive Tester

HOTOTECH HTBC-1129 Four-in-One Battery Pack Safety Comprehensive Tester

Four-in-one battery pack safety comprehensive test machine with battery pack immersion fire extinguishing.

Four test machines share one upgraded fire extinguishing tank and one lifting platform:

• Battery pack external combustion test
• Automatic adjustment resistance short-circuit test
• Battery pack thermal runaway test
• Seawater immersion test

During the test, if internal thermal runaway of the battery pack leads to combustion, the computer remotely controls the lifting platform and sinks the burning battery pack to the bottom of the pool to immerse the fire.

External combustion tester of the battery pack

• Test structure: 1 battery pack lifting pad, 1 firebrick moving cover plate, 1 combustion oil basin, 1 set of remote computer control, 1 set of remote video surveillance
• Refueling: mobile small gas station pushed next to the oil pan. The control panel inputs the refueling amount. A refueling gun is inserted into the oil basin. Fuel is then pushed to a safe place.
• Combustion height: upper and lower height of the lifting table is displacement-controlled, to control the burning height of the oil surface relative to the bottom of the battery

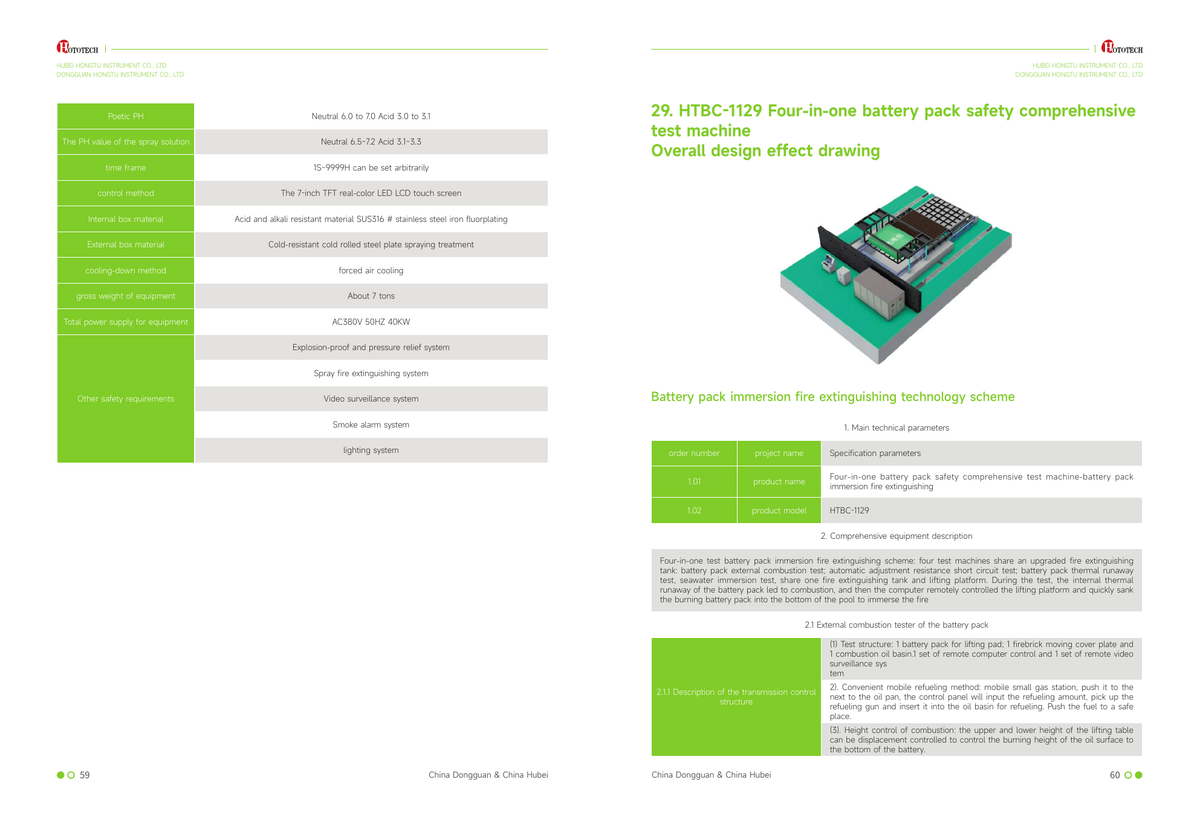

Partner catalog: Full specs and the HOTOTECH catalog live on (partner-owned). ZA Tech is the USA inquiry and quote bridge. Request a quote below for configuration and pricing.
