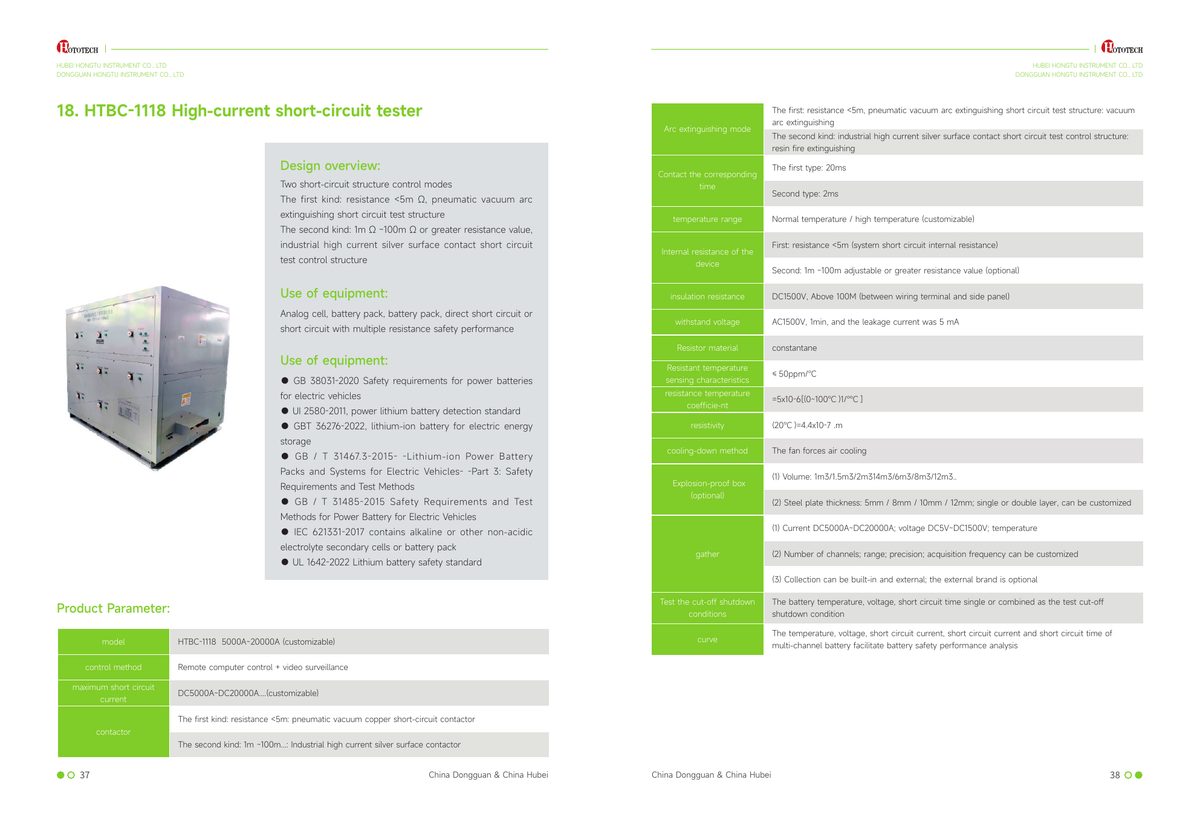

HOTOTECH HTBC-1118 High-Current Short-Circuit Tester

Two short-circuit structure control modes.

• First: resistance <5 milliohm, pneumatic vacuum arc extinguishing short-circuit test structure
• Second: about 1 milliohm to 100 milliohm, or a greater resistance, industrial high-current silver surface contact short-circuit test structure

Analog cell, battery pack, or battery system: direct short circuit, or short circuit with multiple resistances, for safety performance.

Satisfying standards

• GB 38031-2020 Safety requirements for power batteries for electric vehicles
• UI 2580-2011, power lithium battery detection standard (as printed)
• GB/T 36276-2022, lithium-ion battery for electric energy storage
• GB/T 31467.3-2015 Lithium-ion power battery packs and systems for electric vehicles, Part 3: Safety requirements and test methods
• GB/T 31485-2015 Safety requirements and test methods for power battery for electric vehicles
• IEC 62133-2017 Secondary cells and batteries containing alkaline or other non-acid electrolytes
• UL 1642-2022 Lithium battery safety standard

Product parameters

• Model line: HTBC-1118 5000 A to 20000 A (customizable)
• Control: remote computer control + video surveillance
• Current: DC 5000 A to DC 20000 A (customizable)
• Contactor, first kind: resistance <5 milliohm, pneumatic vacuum copper short-circuit contactor
• Contactor, second kind: about 1 milliohm to 100 milliohm, industrial high-current silver surface contactor
• Arc extinguishing, first: vacuum arc extinguishing
• Arc extinguishing, second: resin fire extinguishing
• Contact time, first type: 20 ms
• Contact time, second type: 2 ms
• Temperature condition: normal temperature / high temperature (customizable)
• Device internal resistance, first: <5 milliohm (system short-circuit internal resistance)
• Device internal resistance, second: 1 milliohm to 100 milliohm adjustable, or a greater resistance (optional)
• Insulation: DC 1500 V, above 100 M between wiring terminal and side panel
• Withstand: AC 1500 V, 1 min, leakage current 5 mA
• Cooling: fan forced air cooling
• Explosion-proof box (optional) volumes: 1 / 1.5 / 2 / 4 / 6 / 8 / 12 m3
• Explosion-proof box plate: 5 / 8 / 10 / 12 mm, single or double layer, customizable
• Acquisition: current DC 5000 A to DC 20000 A, voltage DC 5 V to DC 1500 V, temperature; channel count, range, precision, and acquisition frequency customizable; collection built-in or external
• Test cut-off: battery temperature, voltage, and short-circuit time (single or combined)
• Curves: temperature, voltage, short-circuit current, and short-circuit time of multi-channel batteries
