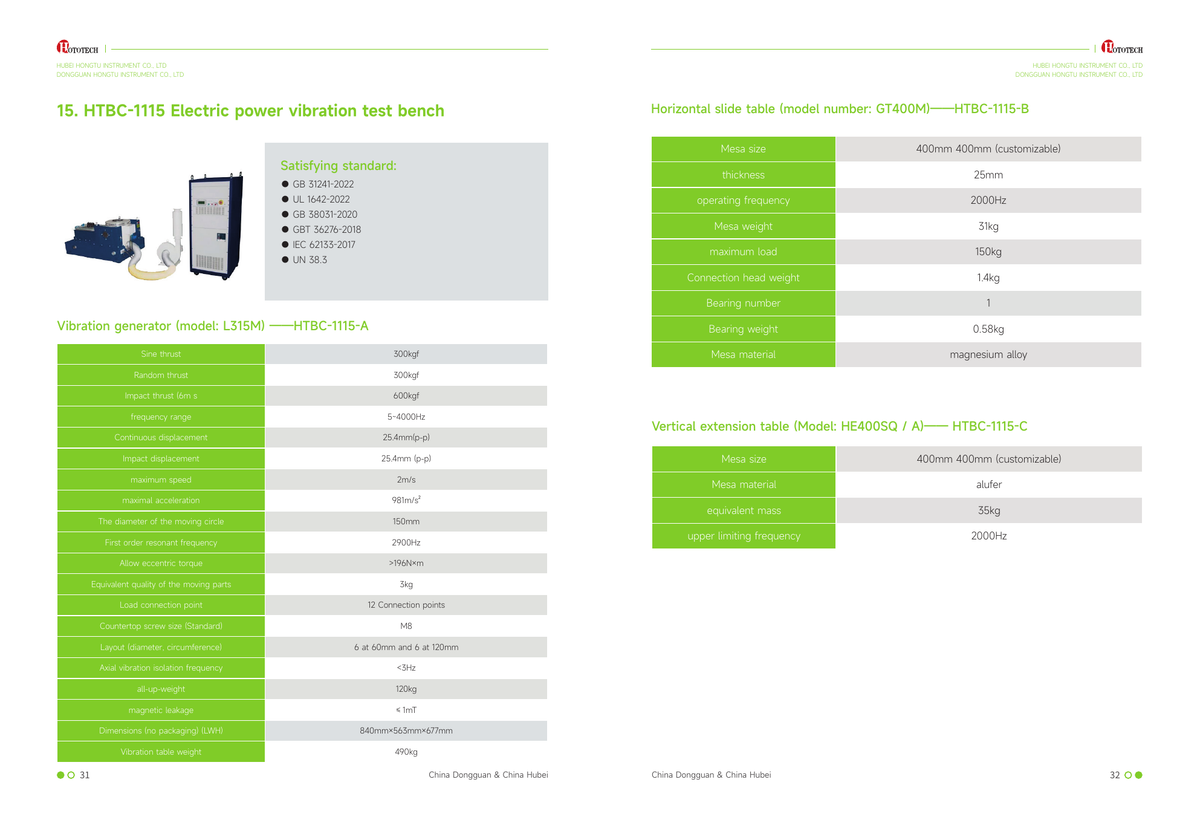

HOTOTECH HTBC-1115 Electric Power Vibration Test Bench

Three equipment blocks: vibration generator HTBC-1115-A, horizontal slide table HTBC-1115-B, and vertical extension table HTBC-1115-C.

Satisfying standards

• GB 31241-2022
• UL 1642-2022
• GB 38031-2020
• GB/T 36276-2018
• IEC 62133-2017
• UN 38.3

HTBC-1115-A vibration generator (model L315M)

• Sine thrust: 300 kgf
• Random thrust: 300 kgf
• Impact thrust (6 ms): 600 kgf
• Frequency range: 5 to 4000 Hz
• Impact displacement: 25.4 mm (p-p)
• Continuous displacement: 25.4 mm (p-p)
• Maximum speed: 2 m/s
• Maximal acceleration: 981 m/s2
• Diameter of the moving circle: 150 mm
• First-order resonant frequency: 2900 Hz
• Allowable eccentric torque: >196 Nxm (as printed)
• Equivalent quality of the moving parts: 3 kg
• Load connection points: 12
• Countertop screw size (standard): M8
• Layout (diameter, circumference): 6 at 60 mm and 6 at 120 mm
• Axial vibration isolation frequency: <3 Hz
• All-up weight: 120 kg
• Magnetic leakage: <1 mT
• Dimensions, no packaging (L x W x H): 840 mm x 563 mm x 677 mm
• Vibration table weight: 490 kg

HTBC-1115-B horizontal slide table (model GT400M)

• Table size: 400 mm x 400 mm (customizable)
• Operating frequency: 2000 Hz
• Maximum load: 150 kg
• Connection head weight: 1.4 kg
• Material: magnesium alloy

HTBC-1115-C vertical extension table (model HE400SQ / A)

• Table size: 400 mm x 400 mm (customizable)
• Upper limiting frequency: 2000 Hz
