HOTOTECH | HTBC-1102 | Battery Temperature-Controlled Short-Circuit Tester

Battery temperature-controlled short-circuit tester for external short-circuit safety evaluation under controlled temperature.

Field instruments and factory test systems for PV and battery / energy storage - installers, O&M, EPCs, module manufacturers, battery and ESS labs, testing labs, inspectors, government inspection labs, and UL / certification bodies.

Model: HTBC-1102. US bridge listing for HOTOTECH / lab-tester equipment. For configuration and quote, request a quote - these systems are inquiry-only (not sold by add-to-cart checkout on this store).

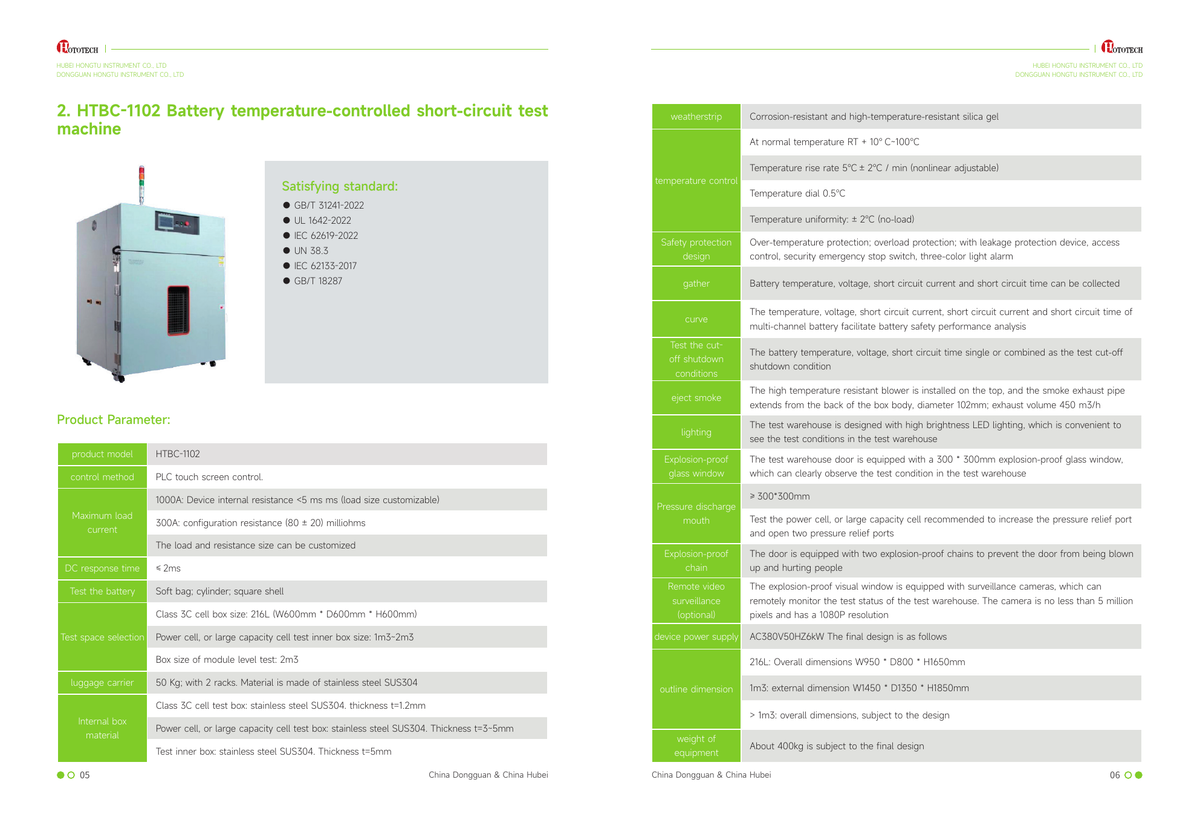

Key specs (brochure):

• Max load: 1000A (R<5 mΩ) or 300A (80±20 mΩ), customizable; DC response ≤2 ms; temp RT+10°C~100°C; rise 5±2°C/min; soft bag/cyl/square; spaces 216L / 1–2 m³ / module 2 m³

Standards referenced in brochure:

• GB/T 31241-2022
• UL 1642-2022
• IEC 62619-2022
• UN 38.3
• IEC 62133-2017
• GB/T 18287
